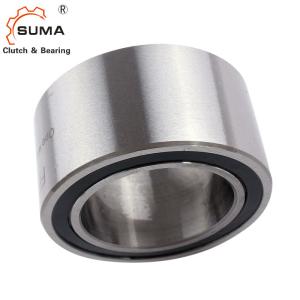

FPD448Z 355334mm Freewheel One Way Clutch Bearing

Name: FPD448Z 355334mm Freewheel One Way Clutch Bearing
Brand: SUMA
Price: 60 USD

China FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing wholesale

Brand Name : SUMA

Model Number : FPD448Z

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD60-USD70 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 5-7 Days

Packaging Details : Carton Box

Product Name : Freewheel Clutch Bearing FPD448Z

Material : GCr15 Bearing Steel

Torque Capacity : 208Nm

Rotation Speed : 1500RPM

Unit Weight : 0.23Kg

Warranty : 1 Year

Size : 35*5334mm

OEM : Accept

Contact Now

FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing

Features

Bearing

The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.

Press fit pressure

Press fit pressure must not be applied to the balls.

Clamping direction

The arrow on the inner ring designates the inner ring's clamping direction.

Width:34 mm

Operating temperature:max. 100° C

Lubrication

Operative lifetime oil lubrication

Installation

Installation tolerances

Shaft h5; hub H6

Mating parts

Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.

Components

Freewheel clutch
insert element*	FE 400 M (meander spring)
insert element*	FE 400 Z (tension spring)
+ Raceways	Bearing steel, hardened and ground
inner ring	Press fit
outer ring	Press fit
+ Ball bearing	Integrated
+ Roller bearing	RL 400
+ Lubrication	Lifetime oil lubrication

Technical Datas

Dimensions and Capacities

Model	d	D	W	Tnom	nmax	Cdyn.	Cstat.	Weight	Item no.
Model	[mm]	[mm]	[mm]	[Nm]	[rpm]	[N]	[N]	[kg]	Item no.
FPD 427 M	15	31	34	94	2,000	7,679	6,397	0.09	306516
FPD 427 Z	15	31	34	84	2,000	7,679	6,397	0.09	306517
FPD 432 M	20	36	34	133	1,800	8,104	7,241	0.12	306518
FPD 432 Z	20	36	34	121	1,800	8,104	7,241	0.12	306519
FPD 437 M	25	41	34	176	1,700	9,201	8,142	0.15	306520
FPD 437 Z	25	41	34	160	1,700	9,201	8,142	0.15	306521
FPD 442 M	30	46	34	223	1,500	10,247	10,708	0.18	300696
FPD 442 Z	30	46	34	208	1,500	10,247	10,708	0.18	300697
FPD 448 M	35	53	34	286	1,300	11,642	13,440	0.23	306524
FPD 448 Z	35	53	34	262	1,300	11,642	13,440	0.23	306525
FPD 453 M	40	58	34	343	1,200	11,417	13,577	0.26	300702
FPD 453 Z	40	58	34	314	1,200	11,417	13,577	0.26	300700
FPD 463 M	50	68	34	461	1,100	13,070	17,063	0.34	306534
FPD 463 Z	50	68	34	428	1,100	13,070	17,063	0.34	306535
FPD 473 M	60	78	34	588	1000	14128	19896	0.41	306536
FPD 473 Z	60	78	34	543	1000	14128	19896	0.41	306537

Pictures

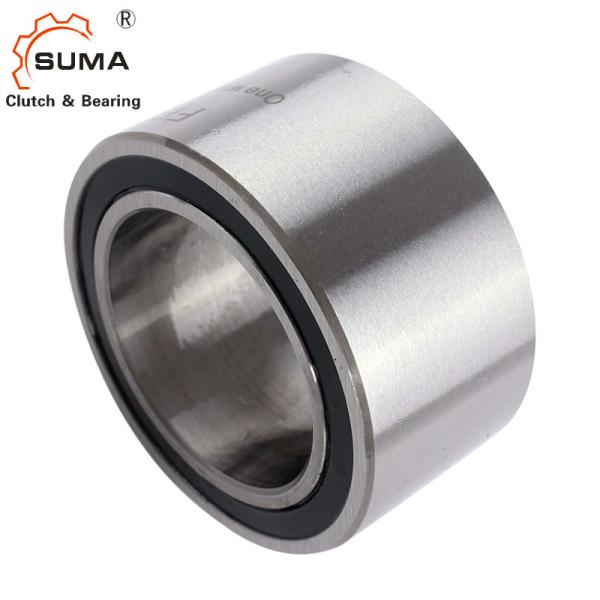

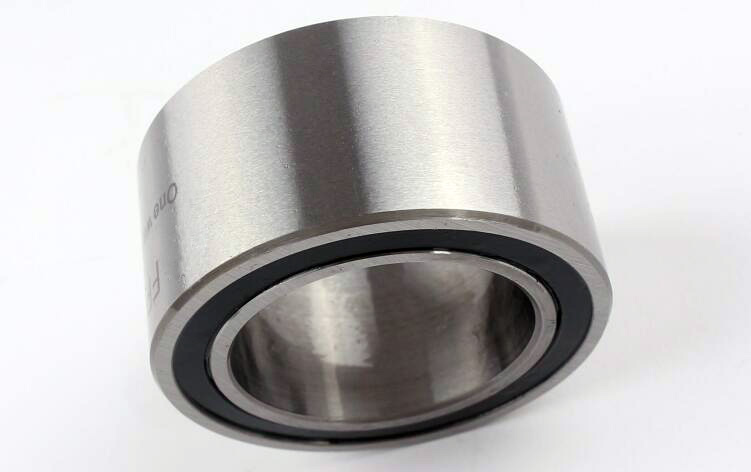

FPD448Z 35*53*34mm Freewheel One Way Clutch Bearing
