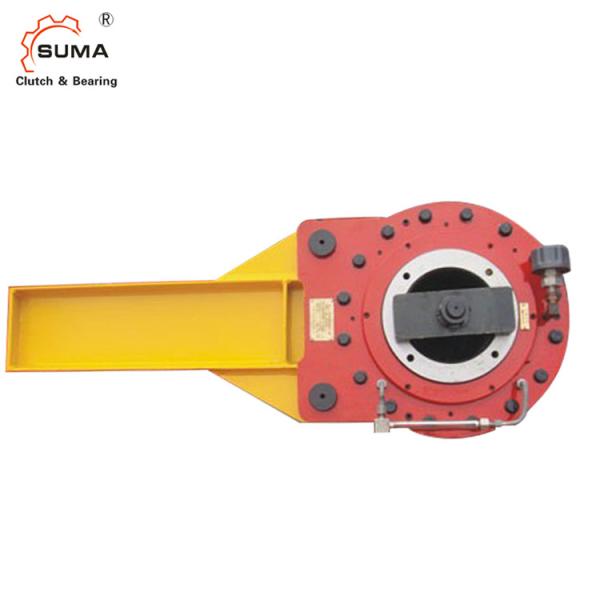

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing

Name: NDZ160 Elevator Low Speed 150 RPM Backstop Bearing
Brand: SUMA
Price: 2000 USD

China NDZ160 Elevator Low Speed 150 RPM Backstop Bearing wholesale

Brand Name : SUMA

Model Number : NDZ160 NJZ16

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD2000-USD8000 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-15 Days

Packaging Details : Wooden Case

Product Name : Backstop Clutch NDZ160 NJZ16

Material : GCr15 Bearing Steel

Torque Capacity : 16000Nm

Rotation Speed : 150RPM

Warranty : 1 Year

Unit Weight : 98Kg

OEM : Accept

Contact Now

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing

Features

1. Low-speed Reverse Prevention Device

2. Bearing support

3. Has advantage of light weight, compact structure, convenient installation, wedge and relaible.

4. Compared with item NJ NYD, it has higher rotational speed, higher torque, higher precision, long life, more reliable and safe.

5. Can be widely used to large inclined angleconveyor, bucket elevator or any device need backstopping.

Dimensions and Capacities

TYPE	Load Capacity	Inner Race Max Speed	Drag Torque	Bore Size	DIMENSION									Weight
	Load Capacity	Inner Race Max Speed	Drag Torque	Bore Size	DIMENSION									Weight
	N·m	r/min	N·m	(mm)	A	B	D	H	h	∅	L	E	F	kg
NDZ160(NJZ16)	16000	150	20	100~130	120	80	320	506			150			98
NDZ250(NJZ25)	25000	150	35	120~160	140	80	360	800			150			112
NDZ400(NJZ40)	40000	150	45	160~200	160	88	430	850			160			182
NDZ500(NJZ50)	50000	100	75	160~220	220	110	500	1000	100	100	240			354
NDZ1000(NJZ100)	100000	100	95	180~250	250	120	600	1200	100	100	290			644
NDZ1300(NJZ130)	130000	90	100	200~270	280	120	650	1300	80	40	290	120	60	755
NDZ2000(NJZ200)	200000	90	110	230~300	320	130	780	1300	80	45	294	135	60	1088
NDZ2800(NJZ280)	280000	90	140	250~320	360	140	850	1500	100	50	320	150	70	1426
NDZ3300(NJZ330)	330000	80	160	260~350	400	140	930	1600	100	55	360	160	70	1921
NDZ5300(NJZ530)	530000	80	220	320~420	450	150	1030	1800	120	60	440	180	80	2945
NDZ7100(NJZ710)	710000	80	250	350~450	500	160	1090	2000	120	70	480	210	100	3518
NDZ10000(NJZ1000)	1000000	70	280	380~480	560	170	1200	2200	150	80	500	230	110	4442

MODELS DNZ160-NDZ1300

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing

Mounting

Pictures

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing
