FXN76-25/115 5000RPM One Way Backstop Clutch Pump Bearing

Name: FXN7625115 5000RPM One Way Backstop Clutch Pump Bearing
Brand: SUMA
Price: 150 USD

China FXN76-25/115 5000RPM One Way Backstop Clutch Pump Bearing wholesale

Brand Name : SUMA

Model Number : FXN76-25/115

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1 PC

Price : USD150-USD190 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal

Supply Ability : 2000 PCS PER MONTH

Delivery Time : 10-15 Days

Packaging Details : Carton Box / Wooden Box

Product Name : Sprag Clutch Bearing FXN76-25/115

Function : Overrunning / Backstopping

Material : Bearing Steel GCr15

Bore Range : 45-60mm

Torque : 1200Nm

Rotation speed : 5000RPM

Outer Dia. : 115mm

OEM : Accept

Warranty : 1 Year

Contact Now

FXN76-25/115 5000RPM Overrunning Spped One Way Backstop Clutch Pump Bearing

Feature of FXN Backstop Pump Bearings

The freewheels FXN are used as:

Backstops

Overrunning Clutches

Internal Freewheels FXN are without bearing support. Concentric alignment of inner and outer ring must be provided by the customer.
The permissible run out (T.I.R.) must be observed. The torque is transmitted on the outer ring by press fit.

In order to transmit the torques speci- fied in the table, the outer ring must be accommodated in a housing with an external diameter K. The housing is made of steel or grey cast iron in minimum quality GG-20. When using other housing materials or smaller external diameters, we urge you to contact us regarding the transmissible torque.

The tolerance of the housing bore is specified in the table under dimension D.

The tolerance of the shaft must be ISO h6 or j6.

Dimension and Capacity of FXN Backstop clutch bearing for PUMP

FXN76-25/115 5000RPM One Way Backstop Clutch Pump Bearing

Freewheel size	Torque Nm	Inner ring Overrun	Bore d Standard						max.	B mm	D mm	F mm	J mm	K _min. mm	L mm	Weight kg
Freewheel size	Torque Nm	Inner ring Overrun	mm	mm	mm	mm	mm	mm	mm	B mm	D mm	F mm	J mm	K _min. mm	L mm	Weight kg
FXN31 - 17/60	110	5000	20*						20*	25	60 P6	55	31	85	24	0,3
FXN31 - 17/62	110	5000	20*						20*	25	62 P6	55	31	85	24	0,4
FXN38 - 17/70	180	5000	25*						25*	25	70 P6	62	38	90	24	0,4
FXN46 - 25/80	460	5000	25						30	35	80 P6	70	46	95	35	0,8
FXN51 - 25/85	560	5000	25	30	35				36	35	85 P6	75	51	105	35	0,8
FXN56 - 25/90	660	5000	35						40	35	90 P6	80	56	110	35	0,9
FXN61 - 19/95	520	5000	30	35	40				45*	26	95 P6	85	61	120	25	0,8
FXN61 - 19/106	520	5000	30	35	40				45*	25	106H7	85	61	120	25	1,2
FXN66 - 25/100	950	5000	35	40	45				48*	30	100P6	90	66	132	35	1,1
FXN66 - 25/110	950	5000	35	40	45				48*	40	110 P6	90	66	132	35	1,8
FXN76 - 25/115	1200	5000	45	55					60*	40	115 P6	100	76	140	35	1,7
FXN76 - 25/120	1200	5000	45	55					60*	32	120 J6	100	76	140	35	1,8
FXN86 - 25/125	1600	5000	40	45	50	60	65		70*	40	125P6	110	86	150	40	2,3
FXN86 - 25/130	1600	5000	40	45	50	60	65		70*	40	130P6	110	86	150	40	2,6
FXN 101 -25/140	2100	5000	55	70					75	45	140P6	125	101	175	50	3,1
FXN 101 - 25/149	2100	5000	70						75	62	149H6	125	101	175	62	4,2
FXN 101 - 25/150	2100	5000	55	70					75	45	150P6	125	101	175	50	3,6
FXN 85 - 40/140	2500	6000	45	50	60	65			65	45	140P6	125	85	175	60	3,2
FXN 85 - 40/150	2500	6000	45	50	60	65			65	45	150P6	125	85	175	60	4,2
FXN 100 - 40/160	3700	4500	45	50	55	60	70	75	75	50	160P6	140	100	190	60	5,1
FXN 105 - 50/165	5200	4500	80						80	62	165P6	145	105	195	62	5,8
FXN 120 - 50/198	7700	4000	60	65	70	75	80	95	95	70	198H6	160	120	210	70	8,6
FXN 140 - 50/215	10100	3000	65	90	100	110			110	69	215J6	180	140	245	70	14,0
FXN 170 - 63/258	20500	2700	70	85	100	120			130	80	258H6	210	170	290	80	21,0

The maximum transmissible torque is 2 times the specified nominal torque.

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
Keyway to DIN 6885.1

Keyway according to DIN 6885, page 1 • Tolerance of keyway width JS10.

* Keyway according to DIN 6885, page 3 • Tolerance of keyway width JS10.

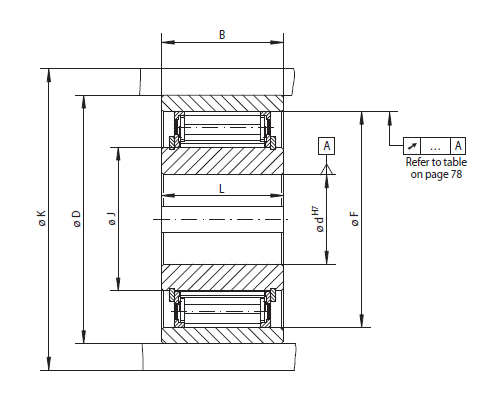

Mounting Example

FXN76-25/115 5000RPM One Way Backstop Clutch Pump Bearing

Lubrication
At speeds in excess of the sprag lift-off speed, no special lubrication is required; the freewheel functions maintenance-free. When operating below the sprag lift-off speed, an oil lubrication of the specified quality must be provided.


FXN76-25/115 5000RPM One Way Backstop Clutch Pump Bearing
